Gosford Hospital—EPG Control System Design, Program & Commission

Project: Gosford Hospital EPG Upgrade

Customer: Kenshaw Electrical

Scope: Design a new generator control system with the DSE 8660 & 8610 to seamlessly integrate with the Cummins PCC3.3 generator controller. The system was to have loading and dynamic load-shedding capabilities. The system had to be able to operate in multiple scenarios: one generator, two generators, mains failure during testing and a temporary generator.

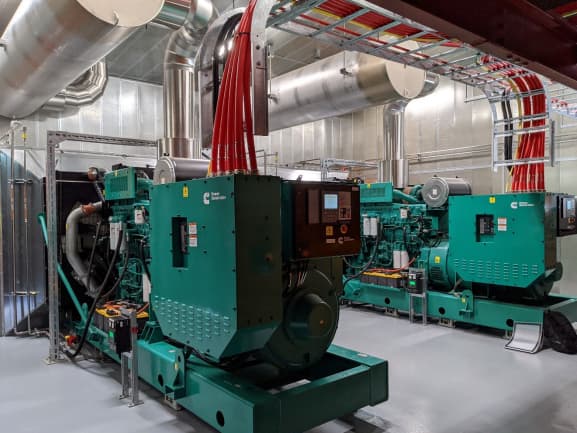

Industrial Generator — API Engineering in Charmhaven, NSW

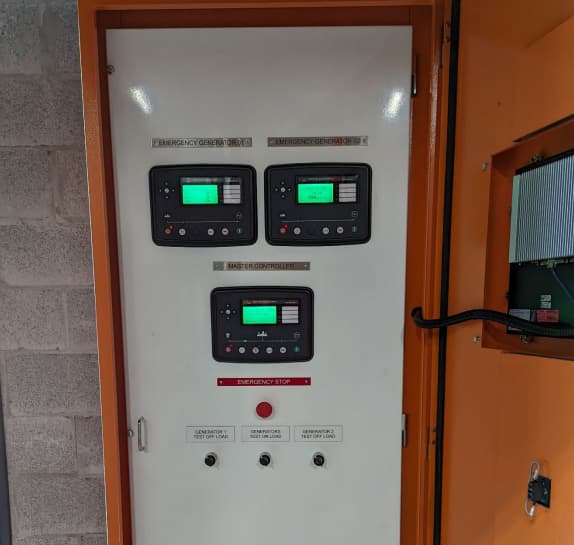

Emergency Generator Controls — API Engineering in Charmhaven, NSW

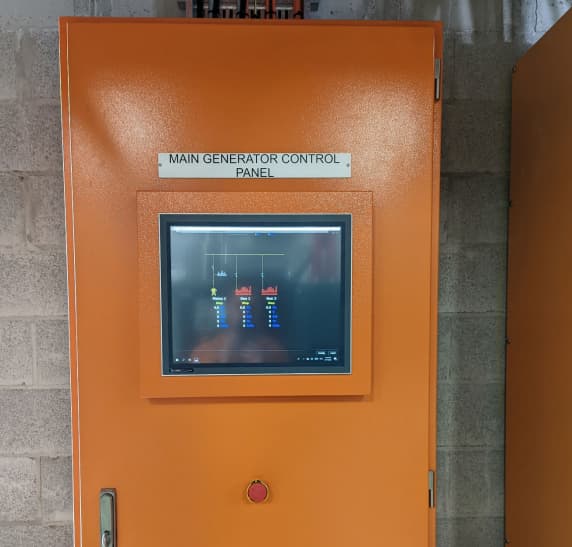

Main Generator Control Panel — API Engineering in Charmhaven, NSW

John Hunter Hospital Program—Commission New Cummins EPG Installation

Project: John Hunter Hospital EPG Upgrade

Customer: Kenshaw Electrical

Scope: Calibrate and program the newly installed Cummins generators with PCC 3.3

controllers. Synchronise the generators, set up HLI interface and commission as per hospital requirements.

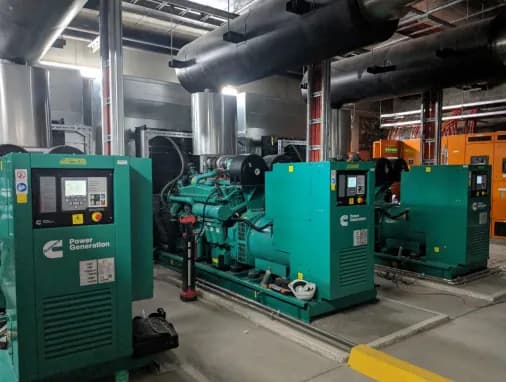

Newly Installed Cummins Generator — API Engineering in Charmhaven, NSW

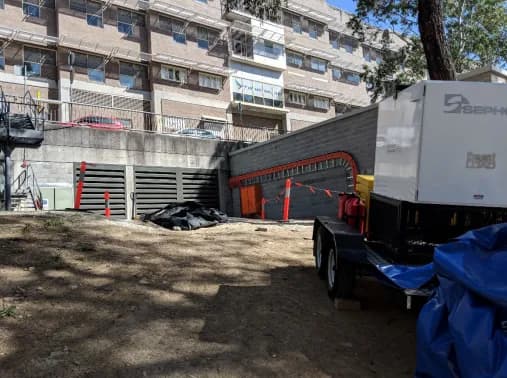

Hospital Building — API Engineering in Charmhaven, NSW

Koramba Cotton Gin—Program, Integrate & Commission New PCC3.3 to 3100 system

Project: Koramba Power Station Repower

Customer: Cummins South Pacific

Scope: Newly installed Cummins C1100D5 generator was installed to an existing fully integrated system. The new C1100D5 control system was a PCC3.3. The existing system was a PCC3100 with remote load sharing via a Toshiba PLC. First start arbitration had to be mitigated. Load sharing had to be set up and programmed. This was one of the first QST30-powered 3100 to 3.3 integrations in Australia.

Generator Installed to an Existing System — API Engineering in Charmhaven, NSW

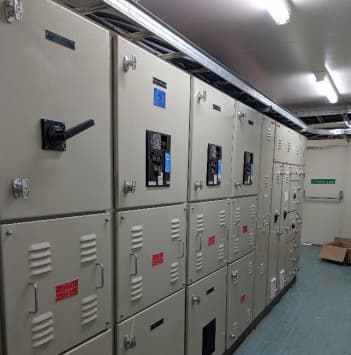

Controls — API Engineering in Charmhaven, NSW

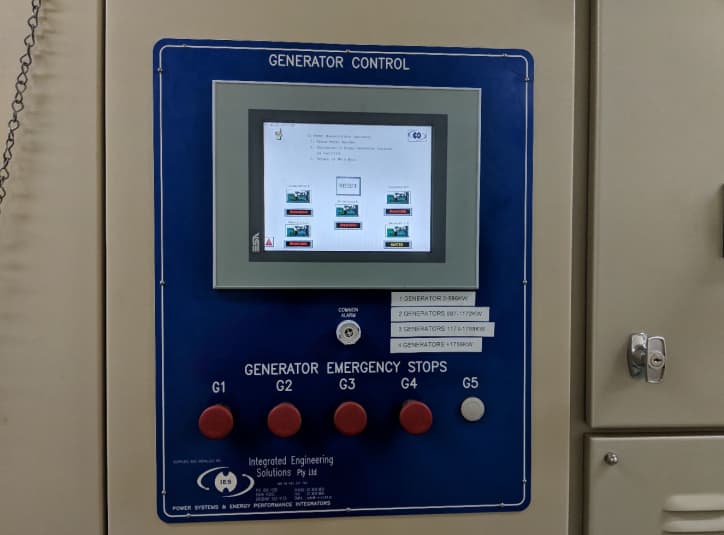

Generator Control — API Engineering in Charmhaven, NSW
